NistalEngine

Nistal Engine is a 3D Engine created in the third year of our Videogame Design and Development degree. It’s mainly created using OPEN-GL. In our Engine you will find an audio system too, that allows you to control audio sources, audio listeners, etc. We used Wwise system for the audio part.

You can check our GitHub repository here: https://github.com/AlbertCayuela/NistalEngine

Version

Nistal Engine v.1.0

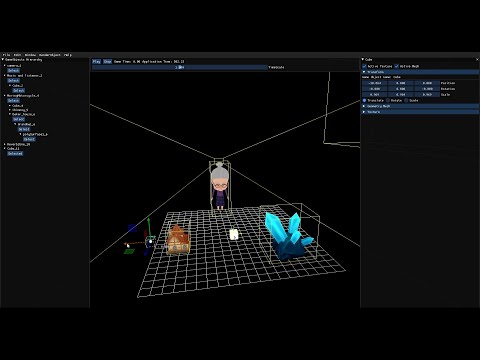

NISTAL ENGINE

Main Core Sub-Systems

3D Renderer

Our engine has a module renderer that handles all the drawing of the program. We don’t use shaders. Instead we use OpenGL Vertex Arrays with indices (except for the debug draw of the primitives which are rendered in direct mode). Everything is drawn in the post update of the module. There, the gameobjects are filtered and we only render the ones that are inside the fustrum.

Geometry Loader

When we detect a file in our Assets/Models/ directory we read the file with Assimp and extract all the information we need (vertices, indices, uvs, name…) in order to render the mesh on screen. Then we save the resource in our own binary format.

Mouse Picking

Mouse picking is done using the Raycast method. When the left mouse button is clicked, the camera module calculates a ray that will start in the corresponding clicked point in the near plane and will project until it reaches the far plane.

GameObjects System

Gameobjects have a tree structure so the transformations affect all the children correctly. Each gameobject has a transform component and if it has a mesh, we calculate its AABB so that it can be filtered by the frustum culling or the quadtree.

Data Serialization

Our engine serializes the entire hierarchy of objects scene through all the gameobjects and their corresponding components. For this we use UUIDs (Universally unique identifier) to be able to handle all the information when serializing and deserializing a scene. For our engine the UUIDs are generated by random numbers of 32 bits.

When using the engine, one of the most important features for the user is to be able of saving the scene in the computer. By doing this the user can save all his work to continue later and share it with other people.

Binary Files Format

All assets in Assets/ are saved as resources in our own binary format inside the Library directory. Doing this we only save the data we need and when we have to read the process is easier and much faster than if we had to read the original asset file such as .fbx or .png. A new resource in our own binary format is generated each time we detect a new assets in Assets/.

Our engine accepts the following assets formats:

3D Camera & Frustum Culling

Our engine has two cameras: the editor camera (which can be controlled as in any other 3D software) and the game camera. The game camera is treated as a component of the gameobject ‘Main Camera’ and has frusutm culling using a quadtree so gameobjects outisde its frustum won’t be drawn.

Importer

Once the user adds a new mesh to the scene we store it in our own file format. By doing this we acomplish great performance when loading scenes, for example when loading a level.

Time Management & Game Mode

When the engine is in game mode, the scene is seen though the game camera (which has frustum culling). We also keep an internal game clock (aside from the app clock) that will only run when the game mode is activated. Its dt will be passed to all the updates instead of the real time dt from the app.

User can play, pause and tick and even modify the speed of the time in game. To manAge all of the time propierties we have a time manager to set the time in all levels of the engine.

User Interface

We have used the ImGui library for our Engine UI. We have been able to do all the menus, hierarchy window, buttons and texts. It has helped us with all the Engine UI options

Audio Sub-System

For the audio sub-system we use Wwise to use audio banks in the engine. We have implemented 2 audio components:

Audio Source

With this component we reproduce audio, depending on the side you can hear the audio from the right or left part of the headphones

Audio Listener

With this component we reproduce audio, depending on the side you can hear the audio from the right or left part of the headphones

Controls

General controls

Camera controls

Instructions to execute

  1. Download the latest release from: https://github.com/AlbertCayuela/NistalEngine/releases
  2. Unzip de file
  3. Execute Nistal Engine.exe

Team Members

- Albert Cayuela: https://github.com/AlbertCayuela

- Nadine Gutiérrez: https://github.com/Nadine044

Tools Used
